Introduction of Electric corn grinder:

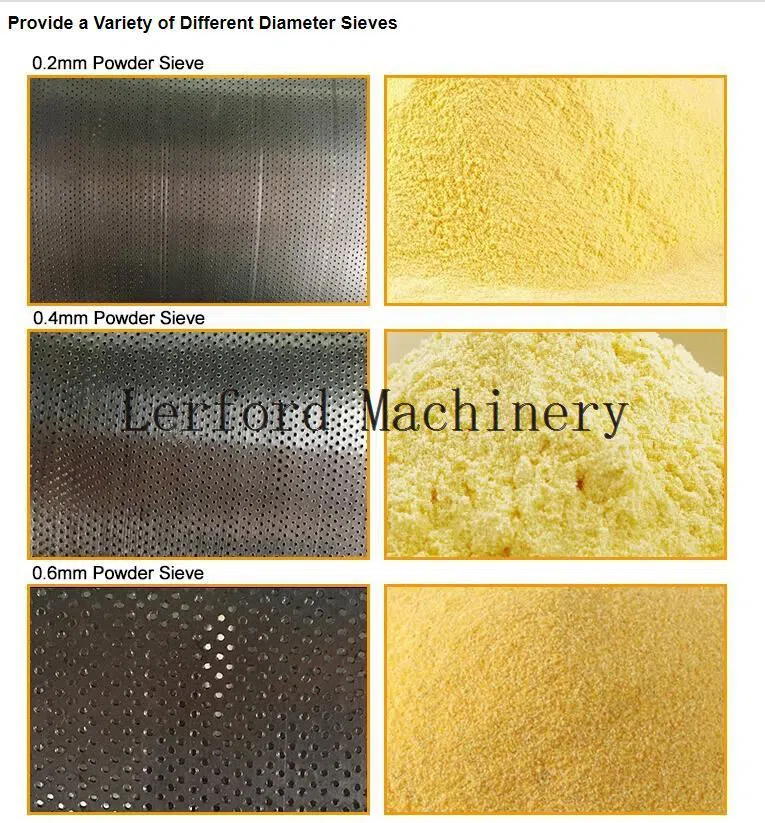

A corn grinder is a small, multi-purpose mill, which can crush all kinds of grains, medicines, and seasoning raw materials. It is suitable for grain processing, feed processing, medicinal materials processing, seasoning products processing, and others For professional processing use, the machine movement has two types: claw type and hammer type, for users to choose. A corn grinder can be equipped with sieves of different specifications as required to process materials of different thicknesses(corn crusher machine).

Technical information of corn grinder:

Principle of electric corn grinder:

The material to be processed enters the crushing chamber from the hopper during working, and the material is crushed by the high-speed rotating working parts, and at the same time changes the moving direction of the material. This machine moves with the rotor. In this process, the particles are repeatedly subjected to the collision between the working parts and the body, as well as the collision and friction between the particles, so that they are gradually crushed until their geometric diameter is smaller than the diameter of the sieve hole. Under the action of centrifugal force and airflow, the crushed materials pass through The sieve hole leaks into the powder chamber and are discharged from the discharge port(corn mill grinder).

Structure of corn grinder:

The claw crusher is mainly composed of 6 parts, including the upper body, the cover, the rotor assembly, the screen, the feeding device, and the frame. The machine body and the rotor assembly together form a pulverizing chamber, the rotor assembly is the main working part, and the pulverization of materials is completed in the pulverizing chamber.

Guide of corn grinder machine:

It is used for crushing grain, crop crushing, Chinese herbal medicine crushing, straw crushing, potato crushing, seasoning crushing, and feed crushing. Among them, the feed analogy is like husk, traditional Chinese medicine, bark, leaves, wheat bran, rice husk, corn cob, and orange stalk. Grains such as dried shrimps, fish meal, seaweed, dehydrated vegetables, hawthorn, seasonings, dates, distiller's grains, cakes, potato residue, tea, soybean meal, cotton, plant roots, stems, leaves, flowers, fruits, various edible fungi, etc. It is an ideal corn grinder for the processing of various difficult materials and is an ideal corn grinder in aquaculture, food, and other industries. (Note: flammable and explosive materials cannot be crushed and processed)

Maintenance of corn grinder machine:

1. After starting, the crops can be fed evenly and continuously only when the machine reaches normal operation.

2. Pay attention to the motor, the speed of the grinder, the sound, and the temperature of the bearing during operation.

3. When feeding, the operator should stａnd on the side of the feeding port, the sleeves of the clothes should be fastened, and the masks and work caps should be worn.

4. When feeding, pay attention to whether there are hard objects such as stones, sickles, tool screws, etc. in the grains, so as to avoid damage to the machine and personal accidents.

5. The corn grinder is not allowed to hang the belt, fill oil, clean up and troubleshoot.

6. If the following problems are found, the engine should be turned off and the machine should be stopped. ① The motor emits smoke, ② it is blocked, ③ the crushing quality is not good, and ④ the bearing is overheated, exceeding 60 degrees.
